GodHand - Spin Mold (For Carve a Hole)
by GodHand
Product Type: Tools
Original price
$69.99 CAD
-
Original price
$69.99 CAD
Original price
$69.99 CAD
$69.99 CAD
-
$69.99 CAD
Current price
$69.99 CAD
Description

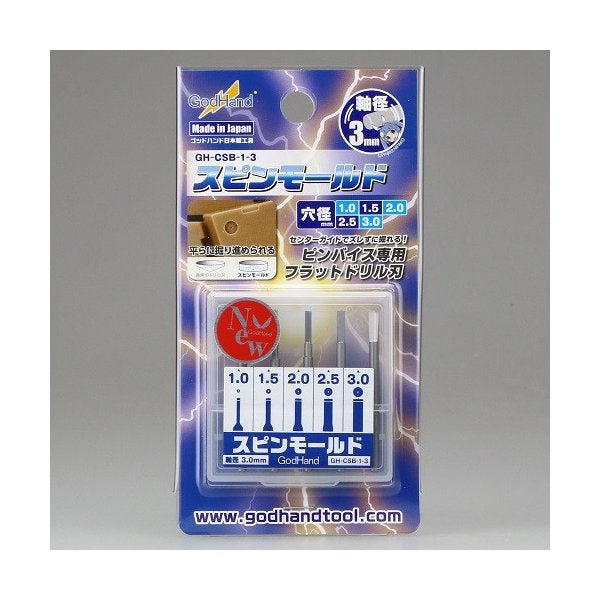

GodHand Spin Mold 1–3mm Set (GH-CSB-1-3)

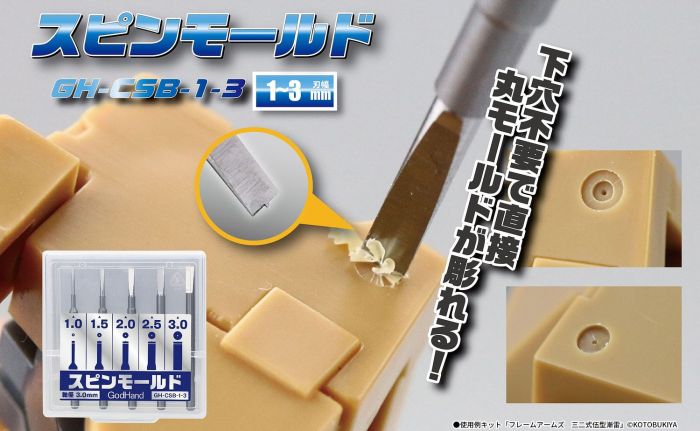

The GodHand Spin Mold is a highly specialized, premium hobby tool designed to carve perfectly round, flat-bottomed circular recesses into plastic models without needing a pilot hole. While standard drill bits leave a conical bottom and standard spin blades require a pre-drilled guide hole, the Spin Mold features a unique built-in center guide needle. This needle pinches into the exact spot you want to carve, completely eliminating axis shake, wobbling, or sliding across the plastic surface.
Key Features

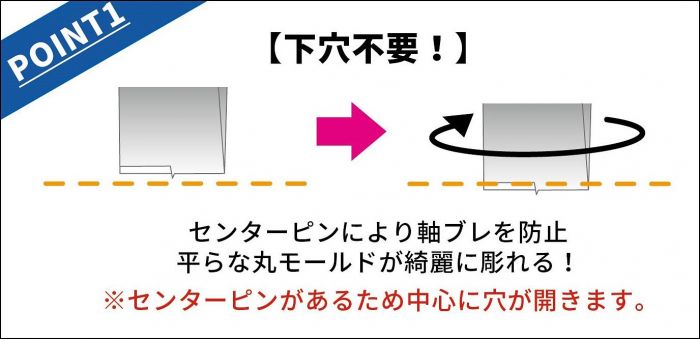

- No Pilot Hole Required: The sharp center pin acts as an immediate anchor, allowing you to begin carving beautiful, precise circles directly onto flat plastic.

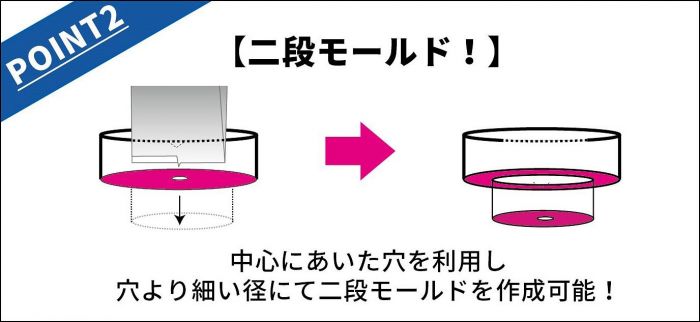

- Two-Tier (Step) Mold Creation: Because the center pin leaves a tiny, precise starter mark in the middle of the recess, you can seamlessly follow up with a smaller bit size to create layered, stepped circular details.
- Perfect Detail Preparation: Creates clean, flat cavities that are perfectly sized for inserting aftermarket metal rivets, custom camera lenses, thruster bells, or photo-etched pieces.
- Unified 3mm Shaft: Every bit features a uniform 3mm shank diameter, ensuring full compatibility with the GodHand Power Pin Vise series or any standard 3mm manual pin vise chuck.
How To Use It
- Position the Center Pin: Place the tip of the center needle exactly where you want the detail located.
- Spin and Push Gently: Apply light, even downward pressure—no more than a standard drill bit—and slowly rotate the pin vise in a clockwise direction.
- Clear and Finish: The outer blade edges will smoothly shave a flat circle around the center point, pushing plastic dust up and out.
Specifications
- Product Code: GH-CSB-1-3

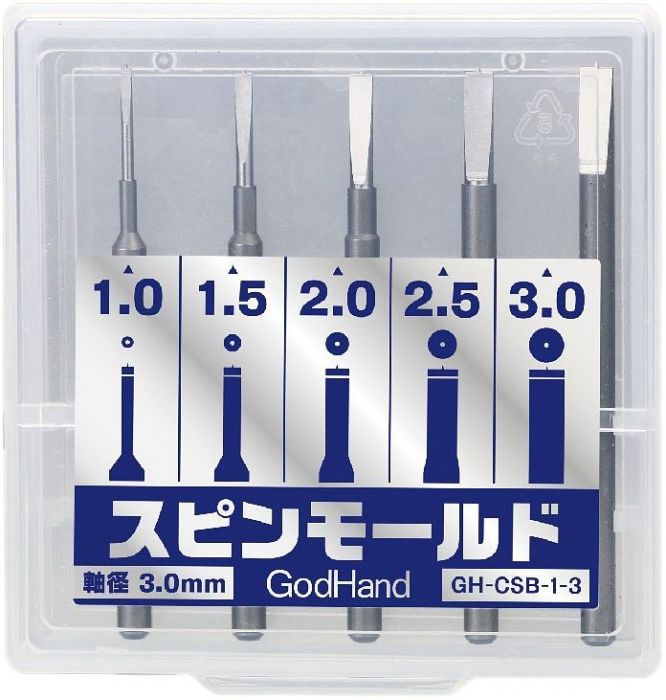

- Blade Width Sizes Included (5-Piece Set): 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm
- Shaft Thickness: 3.0mm (Unified)
- Material: Premium Special Cutlery Steel

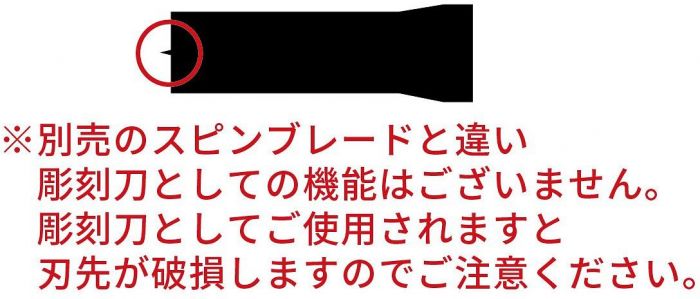

- Target Materials: Specifically engineered for polystyrene (PS) plastic, ABS, and resin parts. Do not use as a side-carving knife or on metals, as prying actions can snap the delicate blade tips.
