GodHand - Spin Blade (for Power Pin Vise) GH-SB-1-3
by GodHand
Product Type: Tools
Original price
$39.99 CAD
-
Original price
$39.99 CAD
Original price
$39.99 CAD
$39.99 CAD
-
$39.99 CAD
Current price
$39.99 CAD
Description
This tool from God Hand allows a modeller to create round flat indents into plastic. This can be useful for a number of reasons and to add detail to your model kits. This set comes with 5 bits that measure 1mm, 1.5mm, 2mm, 2.5mm and 3mm. Intended for use with a pin vice.

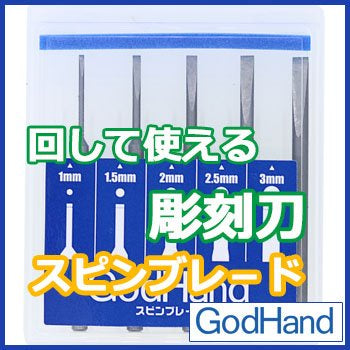

GodHand Spin Blade Set 1–3mm (GH-SB-1-3)
The GodHand Spin Blade Set is a highly specialized, premium hobby tool designed to solve one of the most frustrating problems in scale modeling: flattening the conical, uneven bottoms of holes drilled by standard drill bits. Engineered for use with a pin vise, these bits double as high-precision miniature chisels and rotating carving knives. They allow modelers to effortlessly create perfectly flat recesses for installing aftermarket rivets, metal detail parts, or photo-etched pieces.
Key Features
- Dual-Function Design: Serves as a rotating spin blade to flatten drilled holes and a straight-edge micro chisel for carving away plastic, cleaning seams, and widening square channels.
- Unified 3mm Shaft Diameter: Every bit in the set features an identical 3mm shank. This allows you to quickly swap between different blade sizes without having to change the collet chuck on your pin vise.
- Size Number Engraving: Each blade is permanently laser-engraved with its corresponding width metric, making it easy to identify the correct size at a glance.
- Precision Flat Cutting Edge: Machined to a razor-sharp, perfectly flat profile that cuts plastic smoothly when rotated by hand, leaving a clean finish without ripping or melting the plastic.
How To Use It
- Drill the Guide Hole: Use a standard drill bit to drill out your initial round hole or mold detail.
- Match the Size: Choose the Spin Blade bit that corresponds exactly to the diameter of your drilled hole.
- Spin to Flatten: Insert the bit into your pin vise, place it to the bottom of the hole, and gently rotate it by hand. The flat blade edge will shave away the cone-shaped plastic bottom left by the drill bit, transforming it into a clean, flat-bottomed cavity.
Specifications
- Product Code: GH-SB-1-3
- Blade Width Sizes Included (5-Piece Set): 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm
- Shaft Diameter: 3.0mm (Unified)
- Compatibility: Optimized for the GodHand Power Pin Vise series, but compatible with any standard manual pin vise that accommodates a 3.0mm shank.
- Target Materials: Best suited for polystyrene (PS) plastic, ABS plastic, and resin model parts. Do not use on metals.
